Air-X, das richtige Werkzeug zum exakten Überwachen der Ölverschäumung
Field of Application

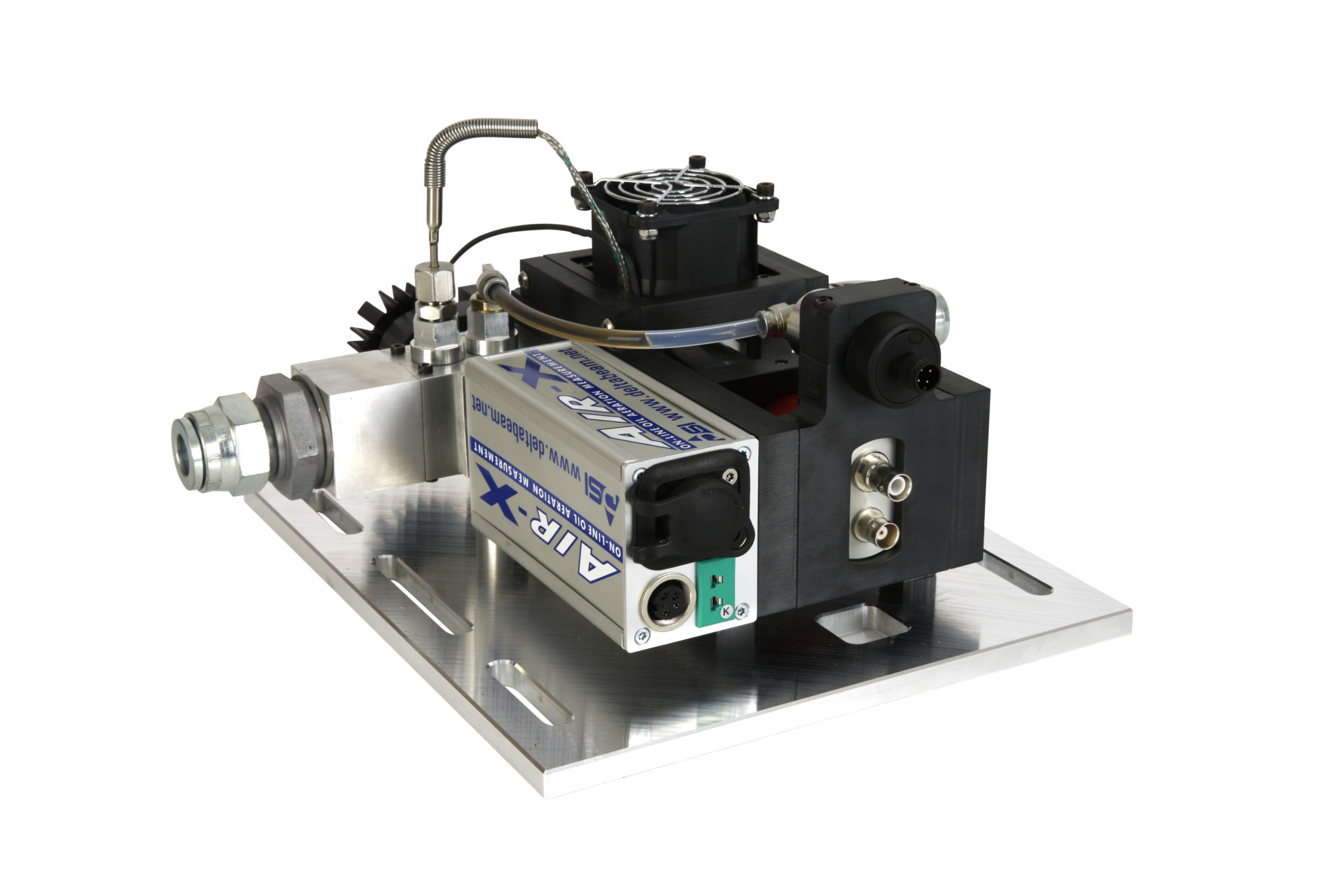

Air-X is an instrument designed for on-line monitoring of gas aeration in a running mechanical system. The operating principle is based on an accurate density measurement using X-ray transmission. An oil sample coming from the mechanical system is circulated continuously into a compact measuring chamber where the density measurement is performed.
Applicable on all fluids, our equipment, originally applied on engines, can be used in a lot of applications.
Air-X can also be combined with Air-Mix to generate controlled aeration and measure it.
Aeration range & Performances
Real time aeration monitoring from 0% to 100%
Accuracy 0.5% at 10 sec and 0.2% at 100 sec
Oil or fluid flow variable from 0,5 to 5 liters/min
T° range : -10°C to 160°C
Custom made possibilities

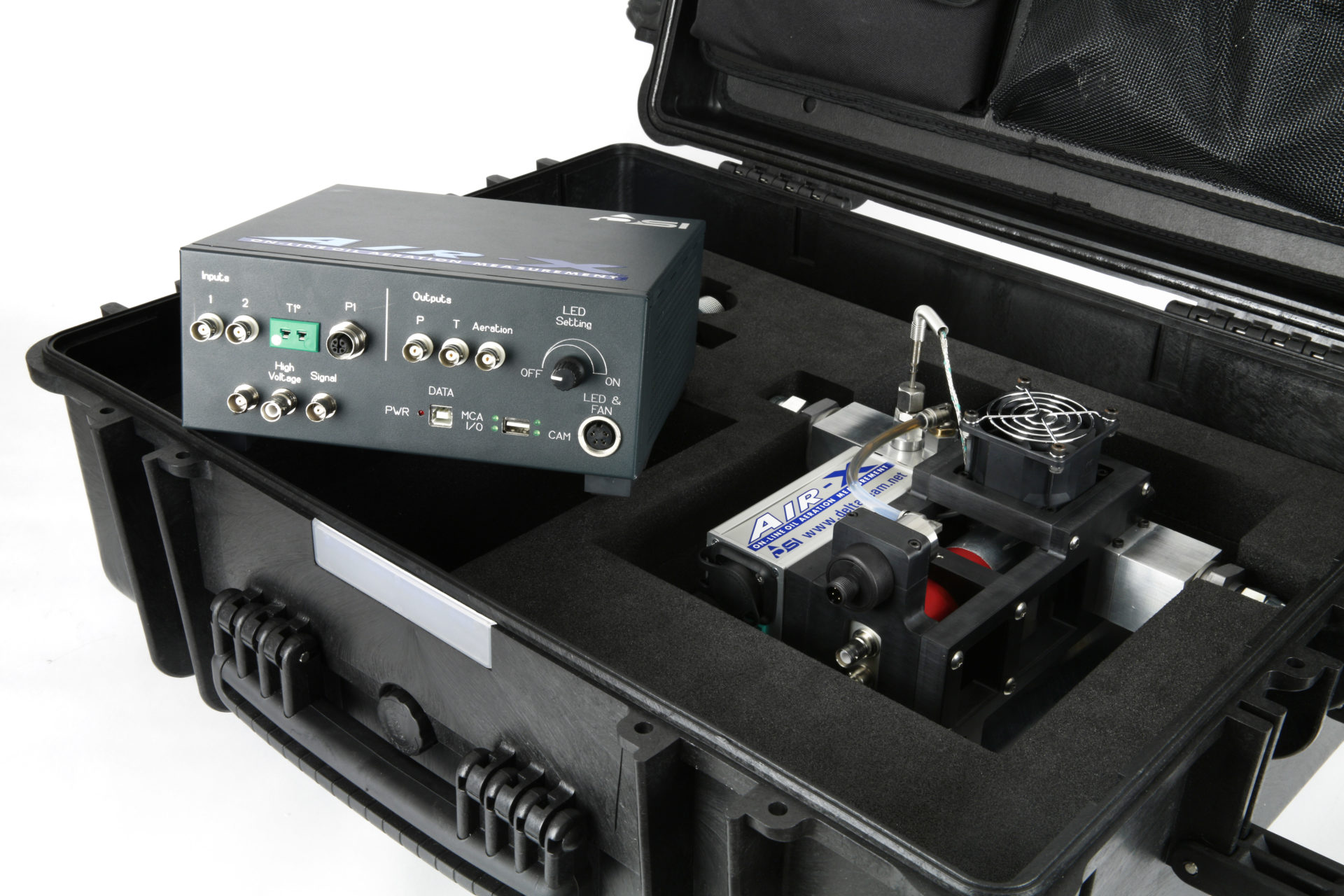

Air-X exists under different versions : standard, compact and super compact.
Possible to buy or rent (weekly, monthly, yearly)
User-friendly set-up : autonomous just after 1 day training, simple interface with logical functions, maintenance only every 2 years
Tests can be performed in our DSi test centre or in your own facilities
Combine it with an Air-Mix to generate and measure oil controlled aeration
Useful for eclectic fields
Automotive
Racing
Mobility (railroad & trucks)
Production line
Medical
Offshore oil industry
Naval
Worldwide References
60 Air-X sold worldwide in 30+ countries
75% of all engine manufacturers have already used Air-X
100% of all Formula One engines manufacturers use Air-X
